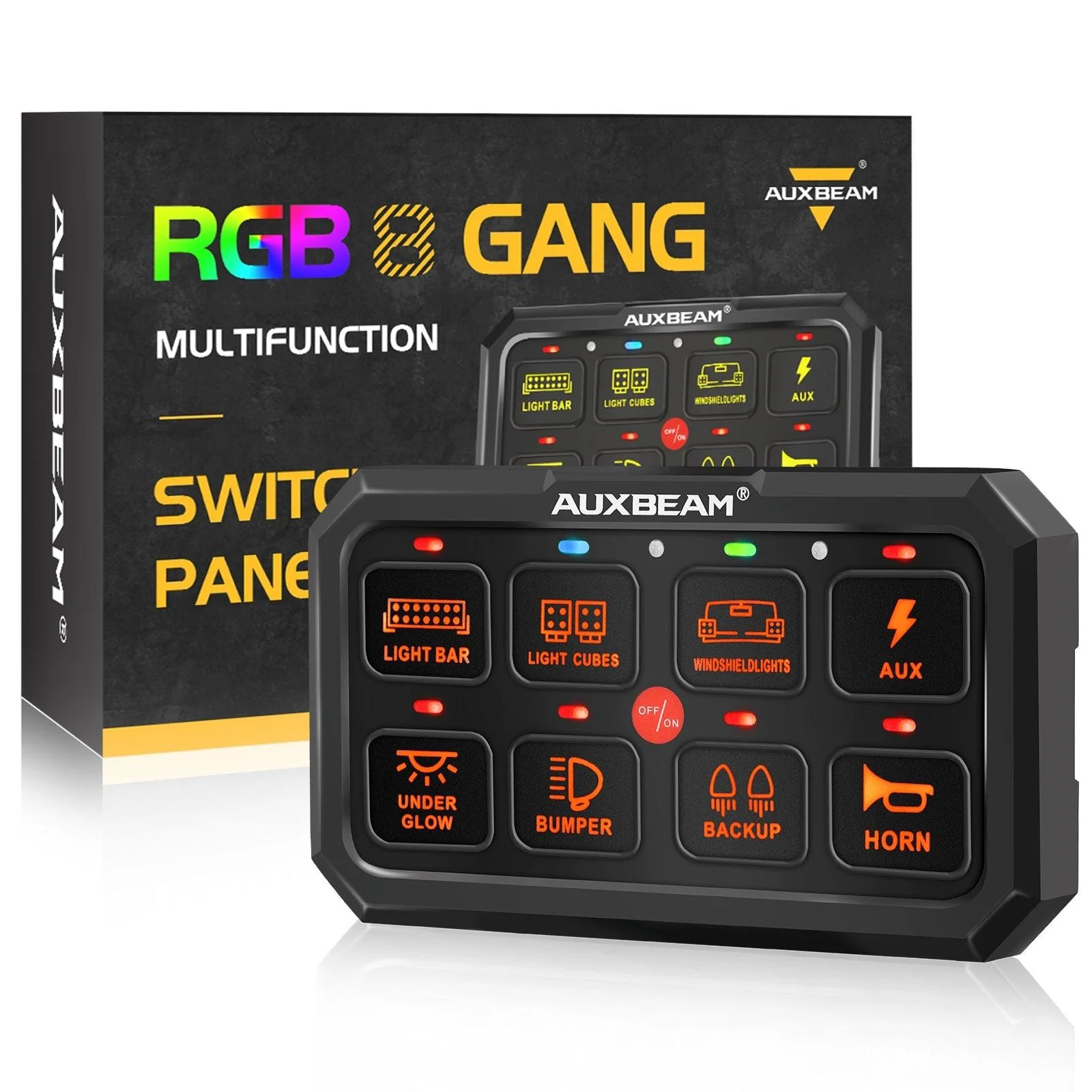

RA80 XL RGB Switch Panel, Larger Size, Toggle/ Momentary/ Pulsed Mode Supported

There are cases where a larger size might be an advantage and Auxbeam’s RA80 XL is the answer for those situations.

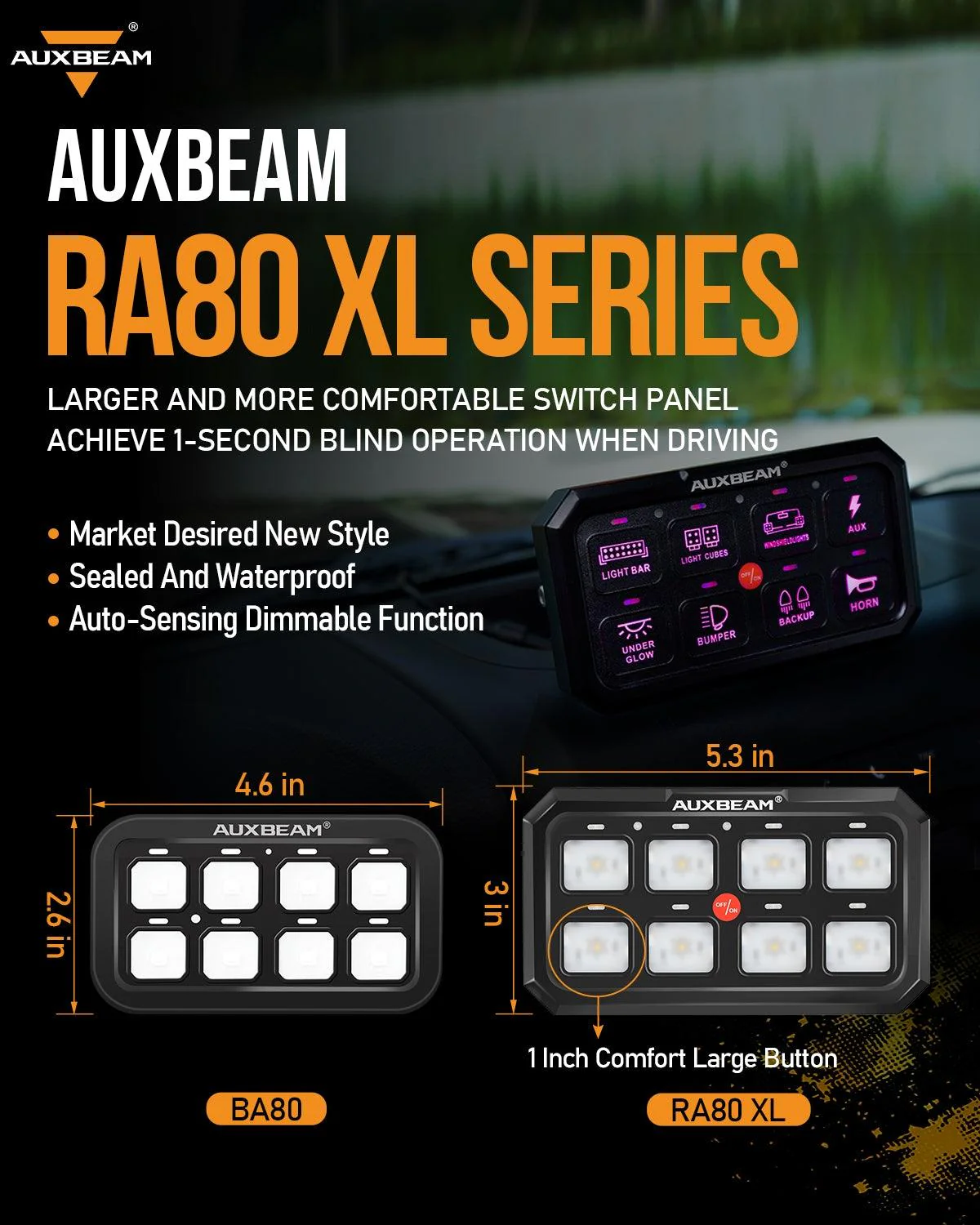

We provide a better operating experience for you to control the lights & device! With 5″ larger panel & 1″ buttons, the RA80 XL switch panel could be easier to use when moving in rough environments.

Description

RA80 XL SERIES RGB switch panel!

There are cases where a larger size might be an advantage and Auxbeam’s RA80 XL is the answer for those situations.

We provide a better operating experience for you to control the lights & device! With 5″ larger panel & 1″ buttons, the RA80 XL switch panel could be easier to use when moving in rough environments.

Features

  • Multi-position installation and wide application. with different brackets, it can be installed in any position you like.
  • Universal 8 switch panel relay system. power up to 8 lights & accessories from one convenient place.
  • Customize your own panel, with 50 universal switch stickers, you can customize your unique personal switch panel according to certain needs.

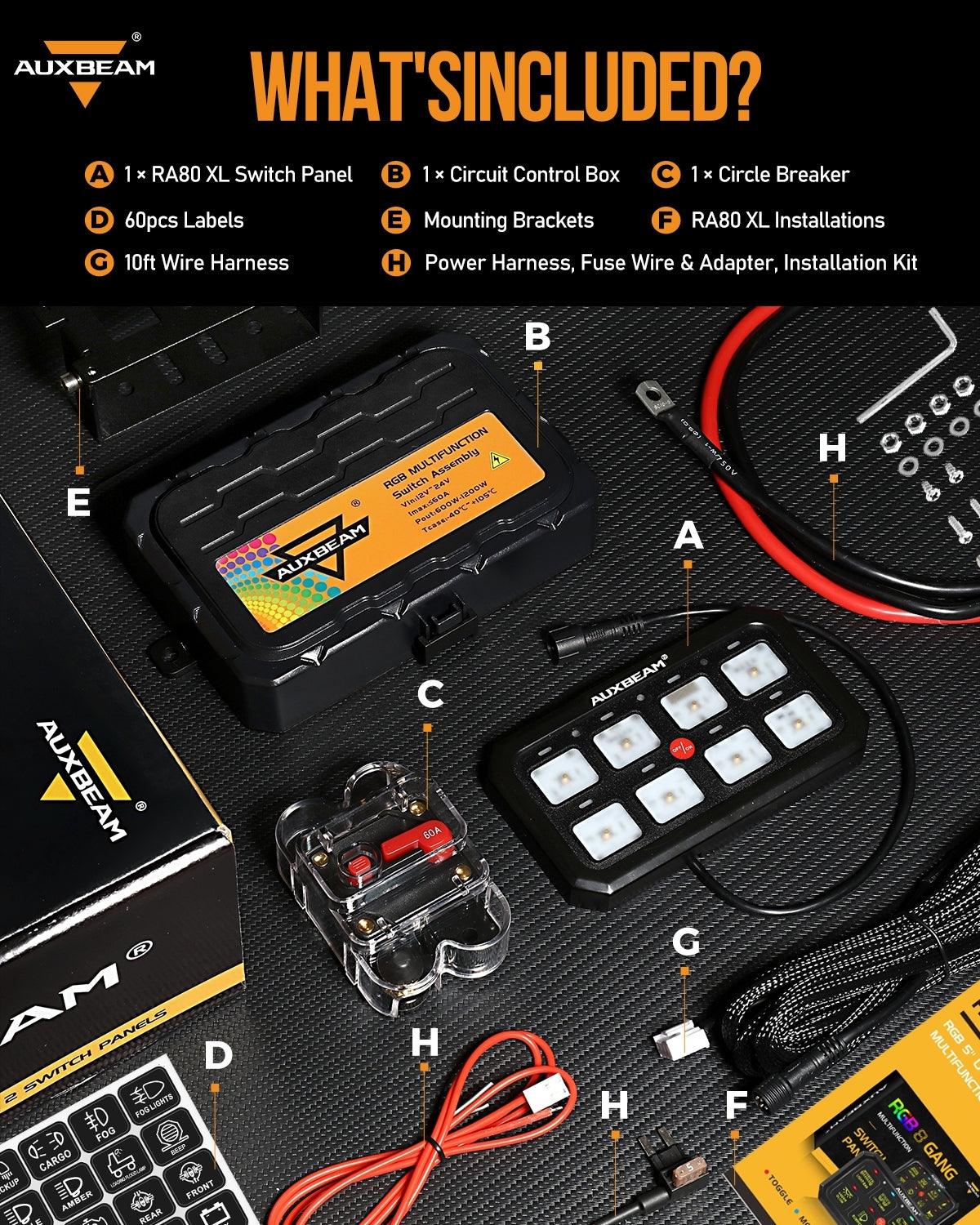

  • All in one design for your ultimate convenience. This kit has everything you need for installation and use. No need to buy extra parts.
  • Automatic Dimmable Backlight for Driving Safer.
  • On the road or other bright places, the switch panel will be brighter, so you can see it clearly.
  • In the tunnel or other dark places, the switch panel will be dim, reduce the impact on the driver’s vision

Specification:

Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1200W
Switch operation: On-Off
Operating temperature: -40°C – +105°C
Waterproof rating: IP65

Specifications

LIGHT COLOR Green Backlight
INPUT VOLTAGE 12-24V DC
MAXIMUM POWER 600W at 12V / 1200W at 24V
MAXIMUM CURRENT 60A
OPERATING TEMPERATURE – 40° C ~ + 150° C
HOUSING MATERIAL High Quality Aluminum
SWITCH OPERATION ON-OFF
WITH/WITHOUT LIGHT SENSOR With
