Description
50’ of 1/4” synthetic rope, cast aluminum hawse fairlead, dash-mounted control switch, and corded remote
FEATURES INCLUDE:

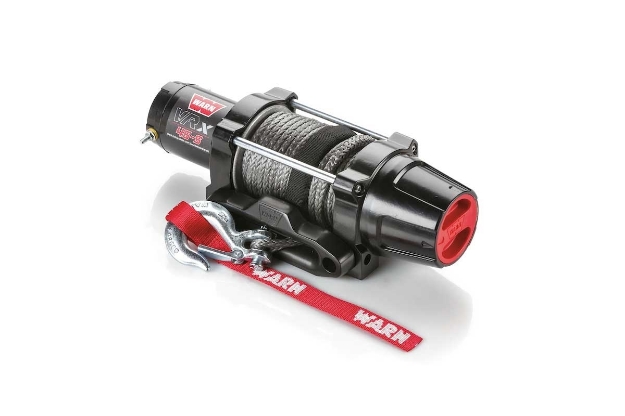

- VRX 45-S includes 50’ of lightweight, easy-to-handle ¼” synthetic rope, hawse fairlead, and zinc-plated hook
- Huge 4,500 lb. capacity available for the hardest-working UTVs
- Load-holding brake for great control
- Durable all-metal construction
- New clutch design based on legendary WARN 4WD hub lock know-how
- Complete waterproof sealing keeps all the elements out
- Semi-gloss back powder-coated finish and stainless steel fasteners for corrosion resistance
- Smooth and reliable all-metal three-stage planetary gear train

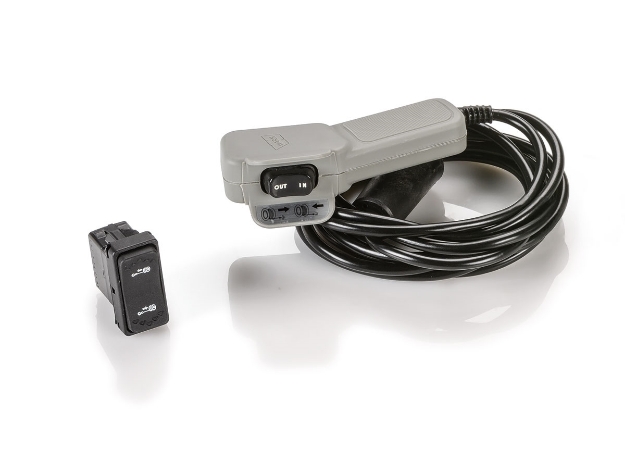

- Dash-mounted rocker control and corded remote
Part Number: 101030
Features
POWERPLANT 9.5 SPECS/PART NUMBER
Model: PowerPlant 9.5
Part Number: 91800
Rated line pull: 9,500 Lbs., (4310 kg)
Motor: Series-wound 4.6 hp 12V, with thermal protection shutoff switch
Electrical controls: Contactor
Remote control: Remote switch with thermometric LED and 12′ (3.7m) lead
Gear train: 3-stage planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone brake
Wire rope: 125′ of 5/16″ (38m of 8mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Flat black powdercoat
Drum diameter/Length: 2.5″/9″ (6.4cm/23cm)
Weight: 100 Lbs. (45 kg)
Air Reservoir: 1/2 gallon with Integrated Air Intercooler
High Air Flow Rating: 12 CFM @ 0 psi, 5 CFM @ 90 psi
Max Air Pressure: 100 psi
Air Pressure Switch: Yes
Air Hose: 20′, with quick-disconnect. Brass air fittings and couplings
